EXPLORATION EXPLORATION FS 500

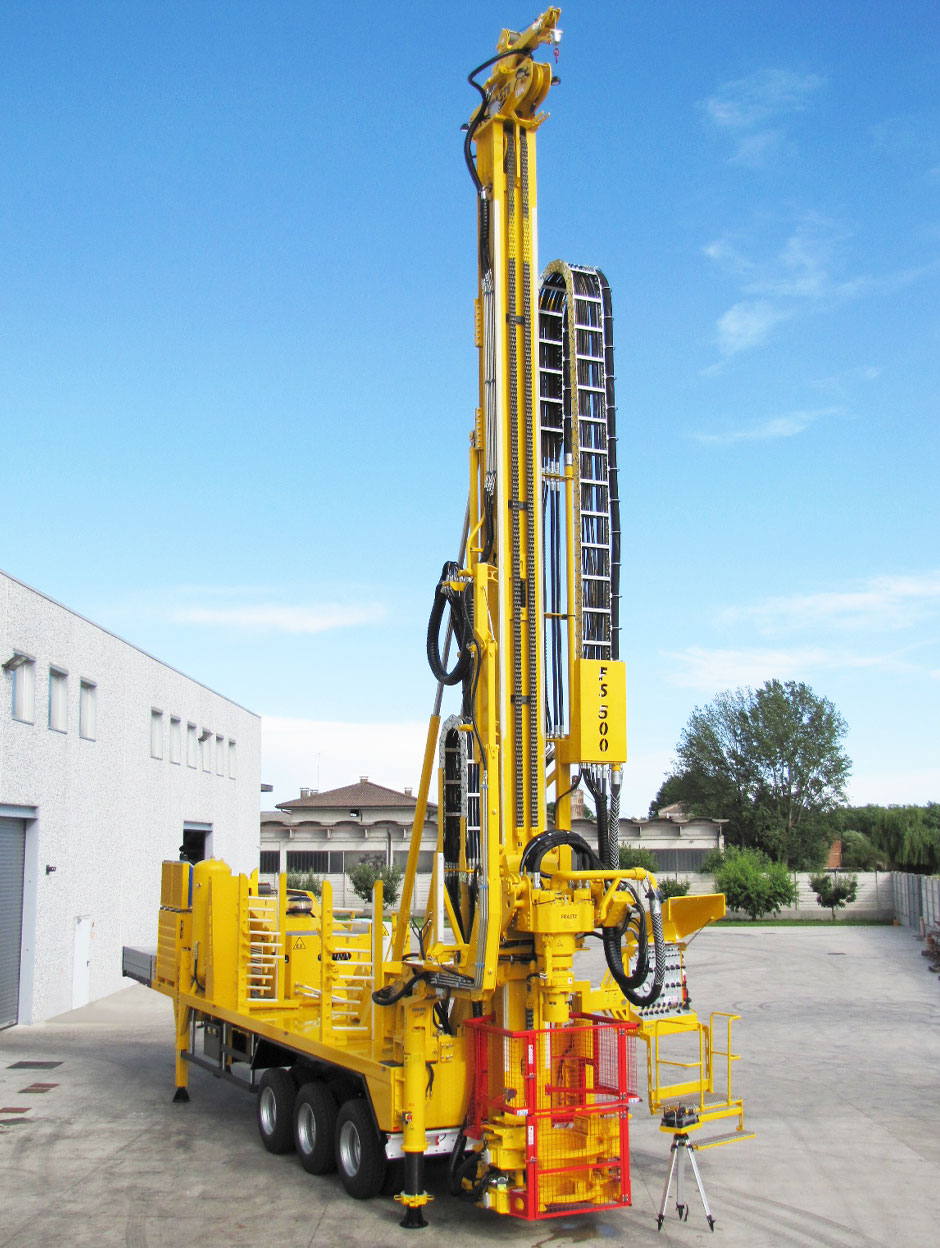

FRASTE EXPLORATION FS 500 - 40 ton pulling capacity –  powerful and dynamic drilling rig. It can perform with all drilling systems: direct/reverse fluid circulation, DTH hammer, RC Hammer drilling, with angle drilling capacity up to 45°. Specially designed for water wells, Geothermal drilling and Mineral Exploration It can be fitted on truck or crawler carrier with different setups, besides the Fraste drill pipes manipulator for 6-9 m drill pipes.

Optionals

  • Standard drill pipes Fraste Manipulator
  • Special Manipulator arm with telescopic extended side shifting device for loading additional drill pipes from a separated container or truck.
  • Hydraulic Chuck
  • Rotary heads with different torques & speeds
  • Mast dump suitable for 45° angle drilling
  • Winches and wire-line winches
  • Pistons, screw and centrifugal mud pumps
  • Foam injection pump
  • DTH hammer line lubricator
  • Single or double drilling clamp
  • Electric generator-welding unit
  • Interlocking guard
  • Remote operation radio control for all drilling functions

Other optional items are available on demand for a highly customized version of the rig.



DIESEL ENGINE
Power 260-563 Kw 354-755 hp
MAST
Pull-up 40000 daN 189923 lbf
Pull-down 27000 daN 60698 lbf
ROTARY HEAD
Max torque 1400 daNm 10320 ft lbf
Max rpm 1400 RPM 1400 RPM
CORING PUMP
Max Delivery 320 l/min 85 gpm
Max pressure 70 bar 1015 PSI
AIR COMPRESSOR
Max Delivery 36000 1270 CFM
Max pressure 30 bar 435 PSI
WIRE-LINE WINCH
Drum Capacity 2500 m 8200 ft
Max speed 240 m/min 787 ft/min
Max Pull Up 800 daN 1798 lbf
MAIN WINCH
Max Pull Up 10000 daN 22480 lbf
Max speed 45 m/min 147 ft/min
RATED DRILLING CAPACITY
HQ Wire Line 2500 m 8200 ft
