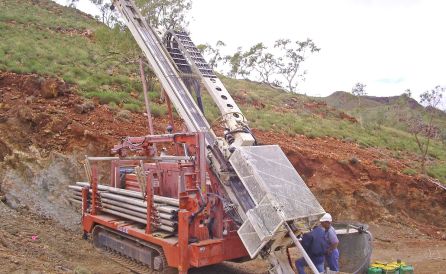

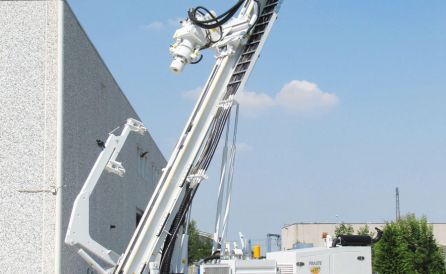

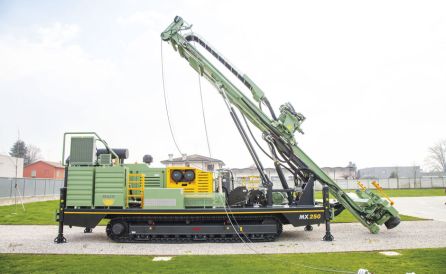

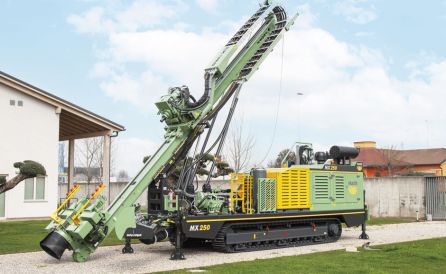

MX 250
Description
All FRASTE MX Series rigs can be prepared for diamond coring, reverse circulation and air core drilling, from vertical to 45° angle drilling. All of them can be prepared as real Multipurpose Rigs, with many options available. All models can be fitted with the famous Fraste automatic rods handler "Manipulator" for a handy, quick and safe drill pipes handling as well as the automatic Core Barrel Handler for a complete hand free core barrel manoeuvring.
Optional
- Reverse Circulation KIT
- Automatic rods handler "Manipulator"
- Manipulator side shifting extension
- Core barrel handling arm
Other optional items are available on demand for a highly customized version of the rig
MORE INFO ABOUT
MX 250 ?
FILL IN THE FORM!
Power | CAT C9.3 - Stage V - Tier 4F - 280 kw (375 Hp) | |
Feed stroke | 7000 mm (23 ft) | |
Pull-up | 14000 daN (31473 lbf) | |
Pull-down | 8000 daN (17984 lbf) | |
Rotary Torque and speed Range W/L | daNm 107÷1360 (789÷10030 ft lbf) - rpm 111÷1400 | |
Rotary Torque and speed Range R.C. | daNm 800÷1860 (5900÷13718 ft lbf) - rpm 76÷200 | |
Rated drilling capacity W.L. HQ | 875 m | |
