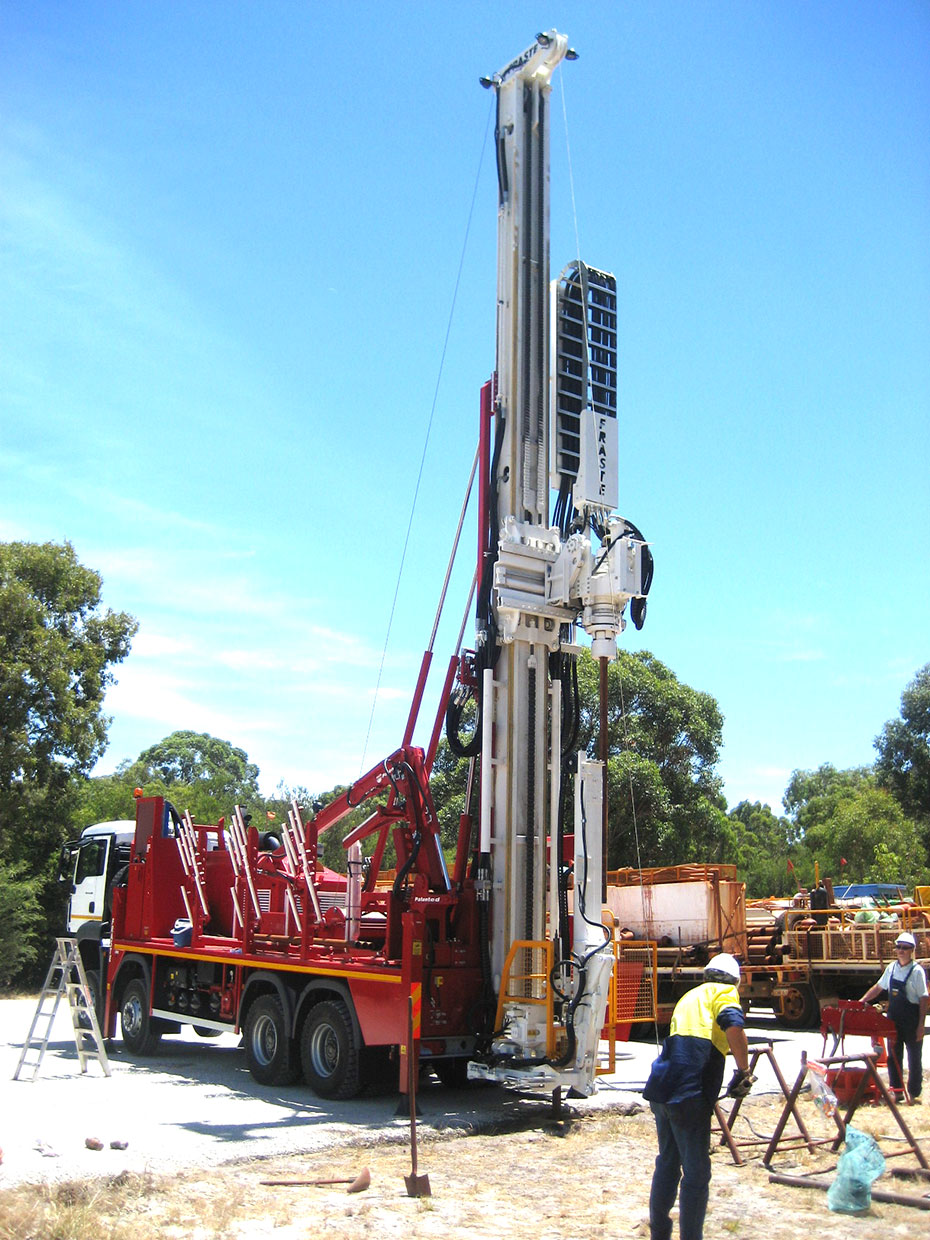

FRASTE FS 400 Drilling Rig mounted on 4 axles truck carrier delivered




Nice to meet you again so quickly.
This time we give you communication of one FRASTE FS 400 Drilling Rig mounted on 4 axles truck carrier, that  we have recently delivered to a customers of ours in Australia.

This FRASTE FS 400 machine has been produced for NQ,HQ,PQ wire-line coring and equipped with a manipulator assembly  for automatic drill pipe loading through a telescopic arm.

The main characteristics of this drill rig are the following:

  • FRASTE FS 400 mounted on 4 axles MAN TGS  8x8 truck carrier.
  • Pull up capacity 25000 kg.
  • Pull down capacity 18000 kg.
  • Powered by deck mounted diesel engine CATERPILLAR C9: 350 HP
  • R09D035  3-speeds rotary head.

Speeds and torques:

  • 1 st speed  daNm  140 – 1000 rpm
  • 2nd speed  daNm  285 –   505 rpm.
  • 3rd  speed daNm  550 –   260 rpm
  • Mast vertical shifting hydraulic device mounted on counterslide  with  2000 mm stroke for 45° angle drilling from the vertical position.
  • Angle drilling mast with hydraulic locking/support device.
  • 10 ton winch Wire–line hydraulic winch.
  • Drill rods manipulator assembly.

The manipulator arm is suitable to allow 90°- 45° angle drilling working, and side sliding for loading additional drilling pipes from a separated container or truck..

Inner core barrel manipulator arm with separate own control panel for easy and fast inner core barrels NQ – BQ – PQ handling.
