FRH - Fraste Roto Handling clamp



... HOW TO SIMPLIFY YOUR JOB ON DRILLING SITE !



fraste roto handling clamp preview


With the Fraste FRH - Fraste Roto Handling clamp - attached to your excavator handling drill pipes & casing will become very easy and effective.
This simple, strong and safe hydraulic device is properly designed to be applied on excavators and can handle different diameters drill pipes and casings; but its first feature is avoiding the manual handling of drill pipes and casing that means much more safety for the drilling crew!

A very useful accessory that will improve your day productivity.

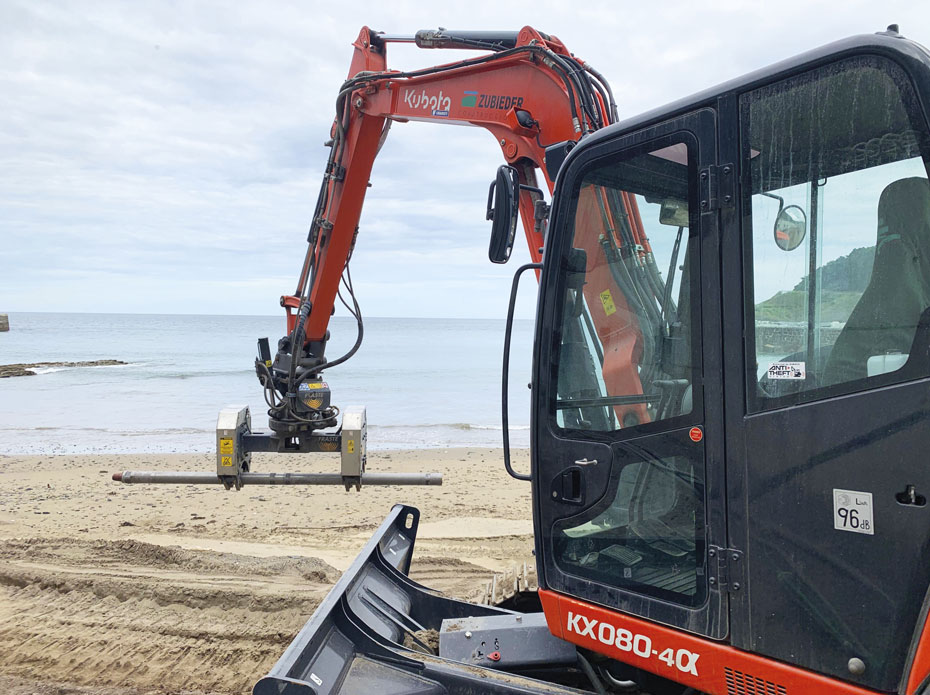

ANTEPRIMA FRH23



Main features of the Fraste FRH - Fraste Roto Handling device:

  • Wide range of gripping diameters in only one clamp
  • Continuos clamping axles with any gripping diameter
  • Two or three clamps are available as option, according to pipes and casing length
  • Simple built-in hydraulic system for an easy and quick connection to any excavator



FRHsfondo3

Click here for download brochure

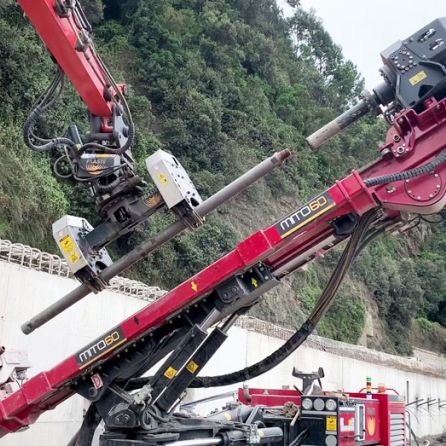

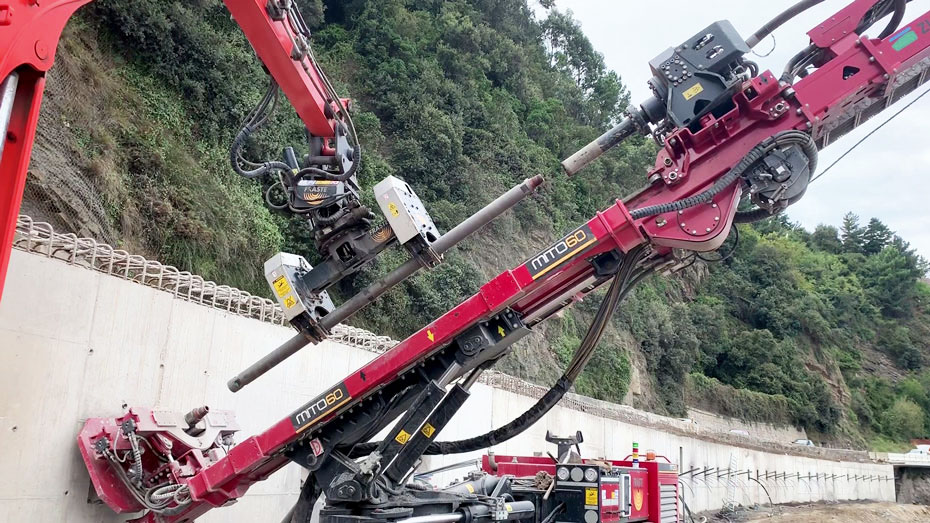

  • fraste frh drill-pipes--casing-handling-device ph12

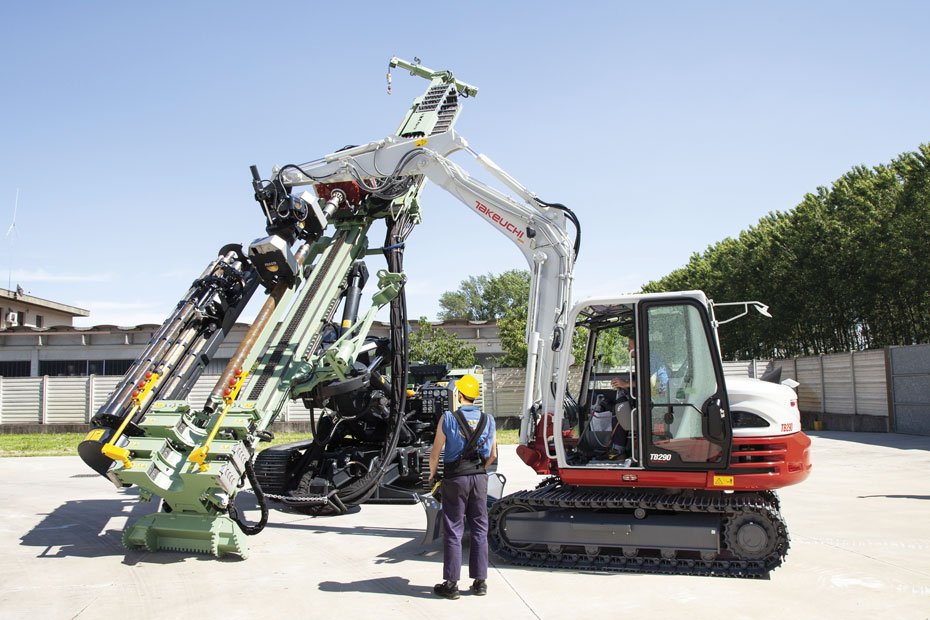

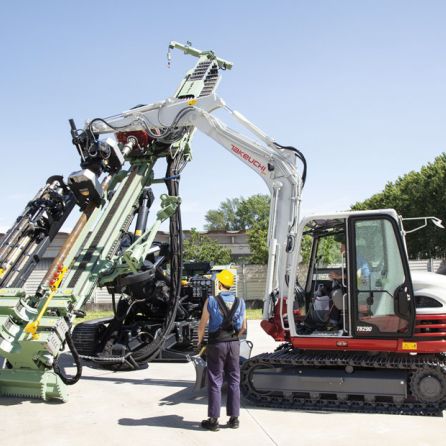

  • fraste frh drill-pipes--casing-handling-device ph3

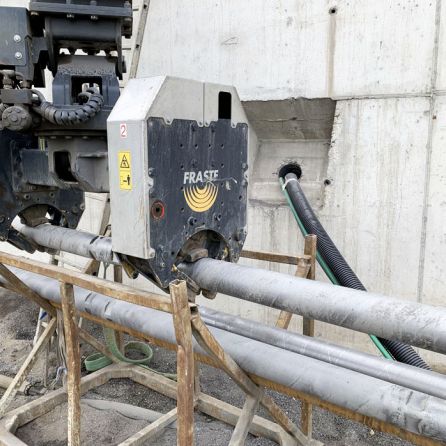

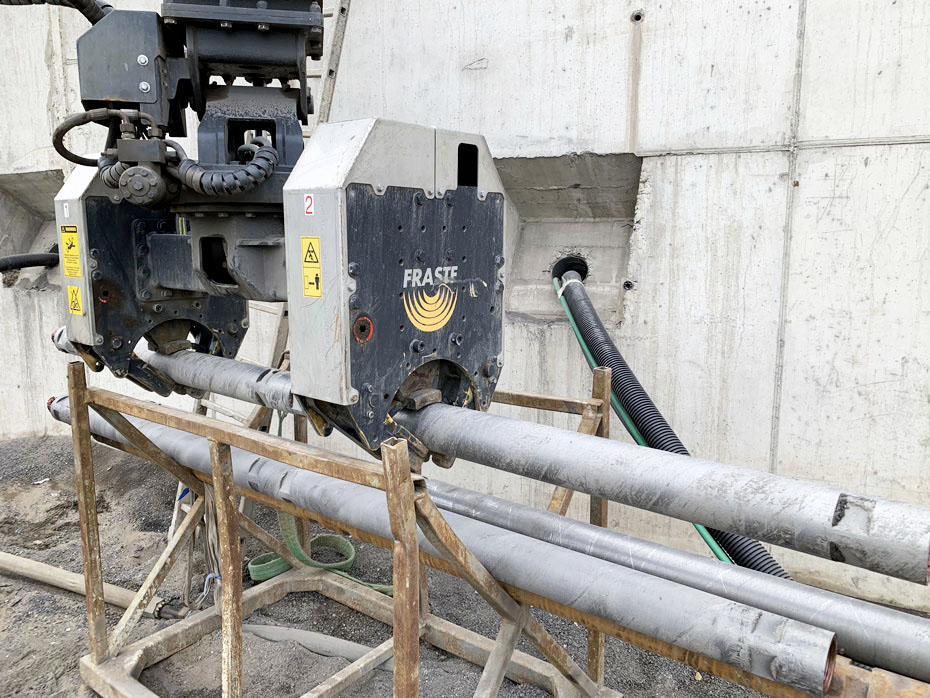

  • fraste frh drill-pipes--casing-handling-device ph5

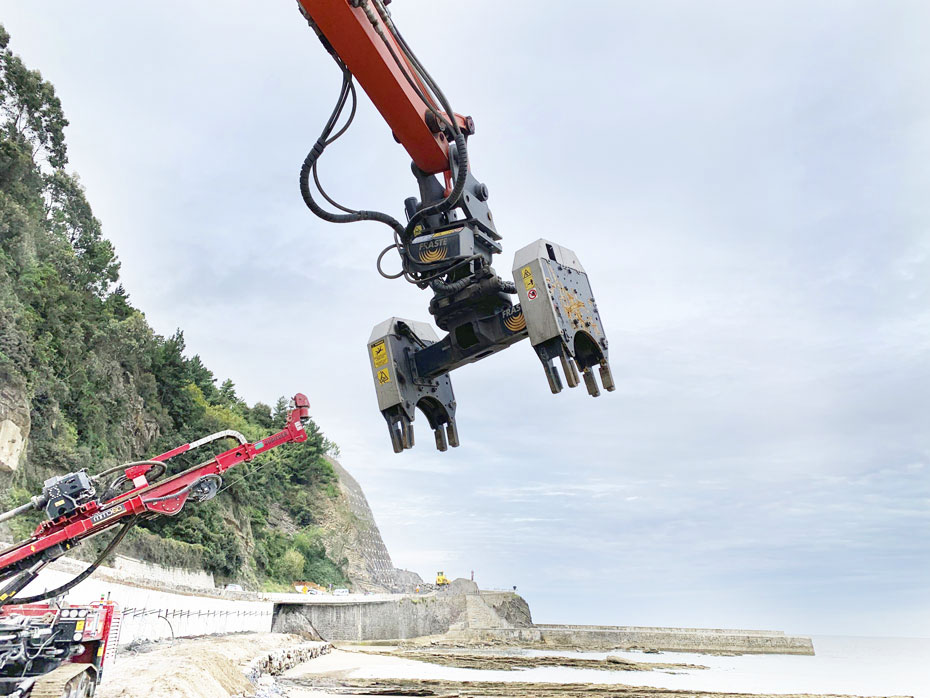

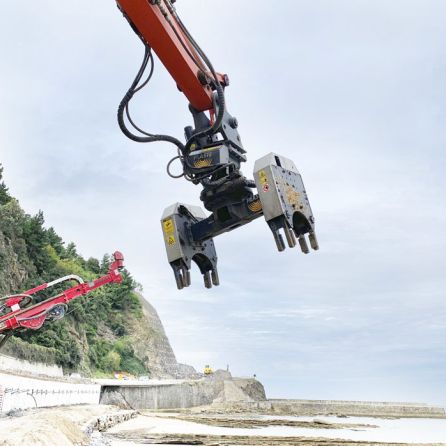

  • fraste frh drill-pipes--casing-handling-device ph6



    Model

    FRH

    Version

    FRH 2  -  FRH 3

    Min. Excavator class

    5-6 ton  /  8-10 ton

    Clamp

    2 - 3

    Clamping range

    76-324 mm  /  3"-12,8"

    Max. lenght single tubes

    6000 mm / 19,7 ft

    Max. lenght double tubes

    3000 mm / 9,8 ft  -  4500 mm / 14,8 ft

    Lifting capacity

    650 kg / 1433 lb

    Manipulator weight

    620 kg / 1366 lb  -  800 kg / 1763 lb
